If your Dyna Glo heater isn’t lighting up properly or keeps shutting off, the problem might be your thermocouple. This small but crucial part controls the gas flow, keeping your heater safe and working well.
Replacing it might sound tricky, but you can do it yourself with the right steps. In this guide, you’ll learn exactly how to replace your Dyna Glo thermocouple quickly and safely. Keep reading to get your heater back to perfect working order without the hassle or extra cost.
Credit: www.zoro.com
Tools And Materials Needed
Replacing a Dyna Glo thermocouple requires specific tools and materials. Having the right items ready makes the process smoother and safer. This section lists everything needed for a successful replacement.

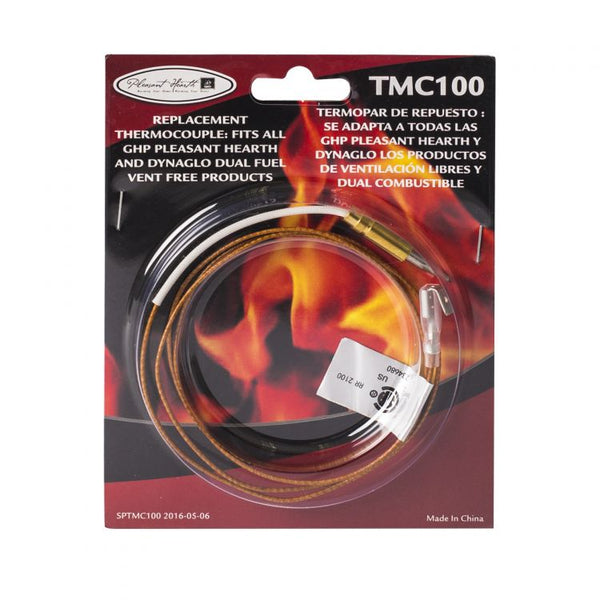

Thermocouple Replacement Part
Start with the correct replacement thermocouple. Choose one compatible with your Dyna Glo model. Using the right part ensures proper function and safety.
Adjustable Wrench
An adjustable wrench helps loosen and tighten nuts holding the thermocouple. It fits various sizes, making it versatile for this task.
Screwdriver Set
A basic screwdriver set is useful for removing panels or screws. Phillips and flathead screwdrivers are commonly needed for this repair.
Work Gloves
Wear work gloves to protect your hands from sharp edges and heat. Gloves also provide better grip on tools and parts.
Flashlight
A flashlight helps see small parts and connections inside the heater. Good lighting reduces mistakes and speeds up the job.
Safety Glasses
Use safety glasses to protect your eyes from dust and debris. Eye protection is important during any repair work.
Multimeter (optional)
A multimeter can test the thermocouple before installation. It helps confirm if the part works correctly to avoid future issues.
Safety Precautions
Safety is the top priority when replacing a Dyna Glo thermocouple. This task involves handling gas and electrical parts. Careless actions can cause injury or damage. Follow safety rules to protect yourself and your home.
Taking precautions reduces risks. It ensures the job goes smoothly and safely. Use tools and materials as instructed. Stay focused and avoid rushing.
Turn Off The Gas Supply
Before starting, shut off the gas valve. This stops gas flow to the heater. Prevents gas leaks that can cause fire or explosion. Double-check that the gas is off by trying to ignite the heater. No flame means the gas is closed.
Disconnect The Power Source
Unplug the heater or switch off its circuit breaker. This prevents electrical shocks during the repair. Confirm there is no power by testing the heater controls. Safety first to avoid accidents.
Work In A Well-ventilated Area
Open windows or doors near your work area. Fresh air lowers the risk of gas buildup. Gas fumes can be harmful if inhaled. Proper ventilation keeps the space safe and comfortable.
Use Proper Tools And Equipment
Choose tools designed for gas appliance repairs. Avoid makeshift or damaged tools that can slip or break. Wear gloves to protect your hands. Safety glasses shield your eyes from debris.
Follow Manufacturer Instructions
Read the Dyna Glo manual carefully before starting. Instructions provide specific safety tips and steps. Stick to the guidelines to avoid mistakes. Proper procedure ensures safe and effective repair.
Locating The Thermocouple
Locating the thermocouple is the first step in replacing it on your Dyna Glo heater. The thermocouple is a small, important part that helps control the gas flow. Knowing its exact place makes the replacement easier and safer.
The thermocouple sits near the burner, where the flame is. It senses the heat and tells the gas valve to stay open or close. If it is not in the right spot, the heater might not work well.
What The Thermocouple Looks Like
The thermocouple looks like a thin metal rod. One end is near the burner flame, and the other end connects to the gas valve. It often has a copper color and a small wire attached.
Where To Find The Thermocouple On A Dyna Glo Heater
Open the heater’s access panel or door. Look inside near the burner assembly. The thermocouple is next to the pilot light or main burner flame. It is usually clipped or screwed in place.
Tools Needed To Access The Thermocouple
Prepare a screwdriver and a wrench. You might need these to remove screws or bolts holding the panel or thermocouple. Keep a flashlight nearby to see clearly inside the heater.
Credit: ghpgroupinc.com
Removing The Old Thermocouple
Removing the old thermocouple from your Dyna Glo heater is the first step in replacement. This process requires care and attention to avoid damage to other parts. Follow the steps below to remove the thermocouple safely and prepare for the new one.
Turn Off The Gas Supply And Power
Start by shutting off the gas supply to the heater. This step is crucial to prevent gas leaks. Also, disconnect the power to ensure safety while working on the heater.
Locate The Thermocouple
Find the thermocouple inside the heater. It is a thin copper tube near the burner. The thermocouple connects to the gas valve with a small nut.
Loosen The Thermocouple Nut
Use a wrench to gently loosen the nut connecting the thermocouple to the gas valve. Turn it counterclockwise until it comes off. Avoid using too much force to prevent damage.
Remove The Thermocouple From The Burner
After loosening the nut, carefully pull the thermocouple from its bracket near the burner. It should slide out easily. If stuck, wiggle it gently to release.
Inspect The Area For Debris
Check the burner area for dust or debris. Clean the area with a dry cloth to maintain proper function. A clean space helps the new thermocouple work well.
Installing The New Thermocouple
Installing the new thermocouple on your Dyna Glo heater is a simple task. It requires careful handling to ensure the heater works safely. The process involves a few clear steps that anyone can follow. Keep tools ready and work slowly for the best results.
Preparing The Heater For Installation
Turn off the gas supply to the heater. Make sure the heater is cool to avoid burns. Remove the access panel to reach the thermocouple area. Clear any dust or debris around the installation spot.
Connecting The New Thermocouple
Place the new thermocouple in the same position as the old one. Secure it tightly but do not overtighten the connection. Attach the thermocouple’s copper tube to the gas control valve. Ensure the tip is near the pilot flame for proper sensing.
Testing The Installation
Turn the gas supply back on. Light the pilot light and watch the flame. The flame should heat the thermocouple tip properly. Check for any gas leaks using soapy water on connections. Tighten fittings if bubbles appear.
Testing The New Thermocouple
Testing the new thermocouple is a crucial step after replacement. It ensures your Dyna Glo heater works safely and efficiently. A properly working thermocouple prevents gas leaks and keeps the flame steady. Follow these simple tests to confirm your installation is successful.
Visual Inspection Of The Thermocouple
Check the new thermocouple for visible damage. Look for bends, cracks, or dirt on the tip. The tip should be clean and shiny. Ensure the connections are tight and secure. A damaged thermocouple can cause faulty readings.
Using A Multimeter To Test Continuity
Set your multimeter to the lowest ohms setting. Connect the probes to the thermocouple terminals. A reading close to zero means good continuity. If the reading is infinite or very high, the thermocouple is faulty. Replace it again if needed.
Testing The Thermocouple With The Heater Lit
Light the pilot flame on your Dyna Glo heater. Hold the thermocouple tip in the flame. The flame should wrap around the tip evenly. If the flame is weak or flickering, the thermocouple may not work well. The heater should stay on without shutting off.
Measuring Thermocouple Voltage Output
Use a multimeter set to millivolts (mV). Place the thermocouple in the flame. Connect the multimeter probes to the thermocouple ends. A good thermocouple produces 25 to 30 mV. Lower voltage means it needs replacement or adjustment.
Troubleshooting Common Issues
Troubleshooting common issues with your Dyna Glo thermocouple helps keep your heater safe and working. Small problems can stop the heater from lighting or staying lit. Checking these issues first saves time and money. Follow simple steps to find and fix common problems.
Checking For Loose Connections
Loose connections can cause the heater to stop working. Look at the wires connected to the thermocouple. Make sure each wire is tight and secure. If a wire is loose, tighten it carefully. Loose wires can stop the heater from getting the signal it needs.
Cleaning The Thermocouple Tip
Dirt or soot can cover the thermocouple tip. This stops it from sensing heat correctly. Use fine sandpaper or steel wool to clean the tip gently. Avoid using water or harsh chemicals. A clean tip helps the heater light and stay on.
Testing The Thermocouple With A Multimeter
A multimeter can check if the thermocouple works. Set the multimeter to millivolts. Heat the thermocouple tip with a lighter or flame. The meter should show a small voltage. If it shows no or low voltage, the thermocouple is bad and needs replacement.
Inspecting The Pilot Light
The pilot light must be steady and blue. A weak or yellow flame can cause problems. Clean the pilot light or adjust the gas flow. A strong pilot light helps the thermocouple sense heat properly.
Replacing A Faulty Thermocouple
If cleaning and testing do not fix the issue, the thermocouple may be broken. Buy a new thermocouple that fits your Dyna Glo heater. Turn off the gas and power before replacing it. Follow the instructions for safe replacement.
Credit: ghpgroupinc.com
Frequently Asked Questions
What Is A Dyna Glo Thermocouple?
A thermocouple is a safety part that senses heat and controls gas flow in heaters.
How Do I Know If My Thermocouple Is Bad?
Signs include no flame, heater shutting off, or weak pilot light.
What Tools Are Needed To Replace A Dyna Glo Thermocouple?
You need a wrench, screwdriver, and a new thermocouple for replacement.
How Long Does It Take To Replace A Thermocouple?
Replacing usually takes about 15 to 30 minutes for most users.
Can I Replace The Thermocouple Myself Safely?
Yes, with careful steps and turning off the gas, it is safe to do.
Where Can I Buy A Replacement Dyna Glo Thermocouple?
Replacement parts are available online, at hardware stores, or from the manufacturer.
Conclusion
Replacing your Dyna Glo thermocouple is simple and safe. Follow the steps carefully to avoid mistakes. Always turn off the gas before starting the job. Use the right tools and parts for best results. A working thermocouple keeps your heater running efficiently.
Regular checks can help prevent future problems. Take your time and work with care. This small fix can save you money and hassle. You can do this yourself with a little patience. Keep your heater safe and warm all season.
